For printed gazebo sidewall door layout Hong Kong, agree door position, opening direction and cable routes on the panel plan before artwork is finalised. Check the layout against visitor circulation, equipment positions and venue instructions, then keep key branding clear of zips, openings and routed cables.
Entrance position and visitor flow in printed gazebo sidewall door layout Hong Kong
For a printed gazebo sidewall door layout Hong Kong, start by walking the intended site and sketching the live queue line, counter frontage and staff circulation on a scaled plan. Mark fixed obstacles, planter edges, kerbs, columns and rain direction. Decide where staff must see and intercept visitors, then position the primary entrance to support that interaction rather than placing it at the centre of a panel by default. Note the prevailing pedestrian approach so the door isn't hidden behind a queue barrier. Where footpaths are narrow or near neighbouring stands, coordinate barrier placements and the door's swing or roll direction to avoid clashes.
Record clear opening width targets, whether the door should be centre, offset or corner-based, and any need for a secondary service door. Measure ground slope and any step at the threshold to plan mats or ramps as required by the venue. For quotations, ask suppliers to state the door cut-out width and height, zip configuration, roll-up toggles/straps, reinforcement patches, rain lip/hood options and attachment method to the frame. Confirm panel labelling and left/right orientation conventions in writing. If queues are long or segmented, reference your outdoor concession canopy queue layout Hong Kong so the door does not discharge into a pinch point controlled by security or ticketing staff.
Cable routes in printed gazebo sidewall door layout Hong Kong and canopy sidewall cable access Hong Kong

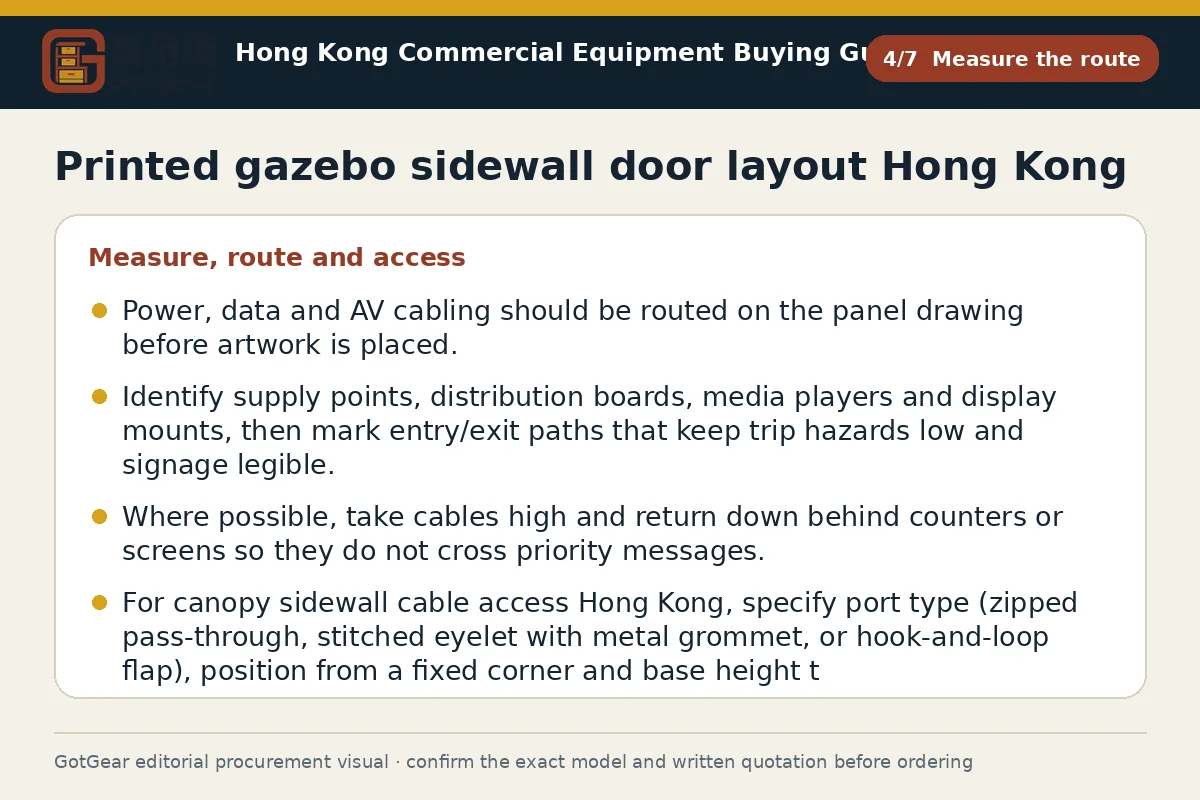

Power, data and AV cabling should be routed on the panel drawing before artwork is placed. Identify supply points, distribution boards, media players and display mounts, then mark entry/exit paths that keep trip hazards low and signage legible. Where possible, take cables high and return down behind counters or screens so they do not cross priority messages. For canopy sidewall cable access Hong Kong, specify port type (zipped pass-through, stitched eyelet with metal grommet, or hook-and-loop flap), position from a fixed corner and base height to clear standing water.
State the bundle diameter for each port as an example starting point (e.g., 25–35 mm), then confirm with the manufacturer based on your actual leads. Request reinforcement fabric around ports and weather flaps if outdoors. If the organiser or venue asks for flame-retardant fabric or cable-management measures, obtain the maker’s statement and any model-specific test summary. In quotations, compare the number of included ports, custom positioning charges, grommet material and stitch density. On receipt, check every specified port exists, zips run smoothly without puckering, and stitched areas show no light through needle holes when backlit by a torch.

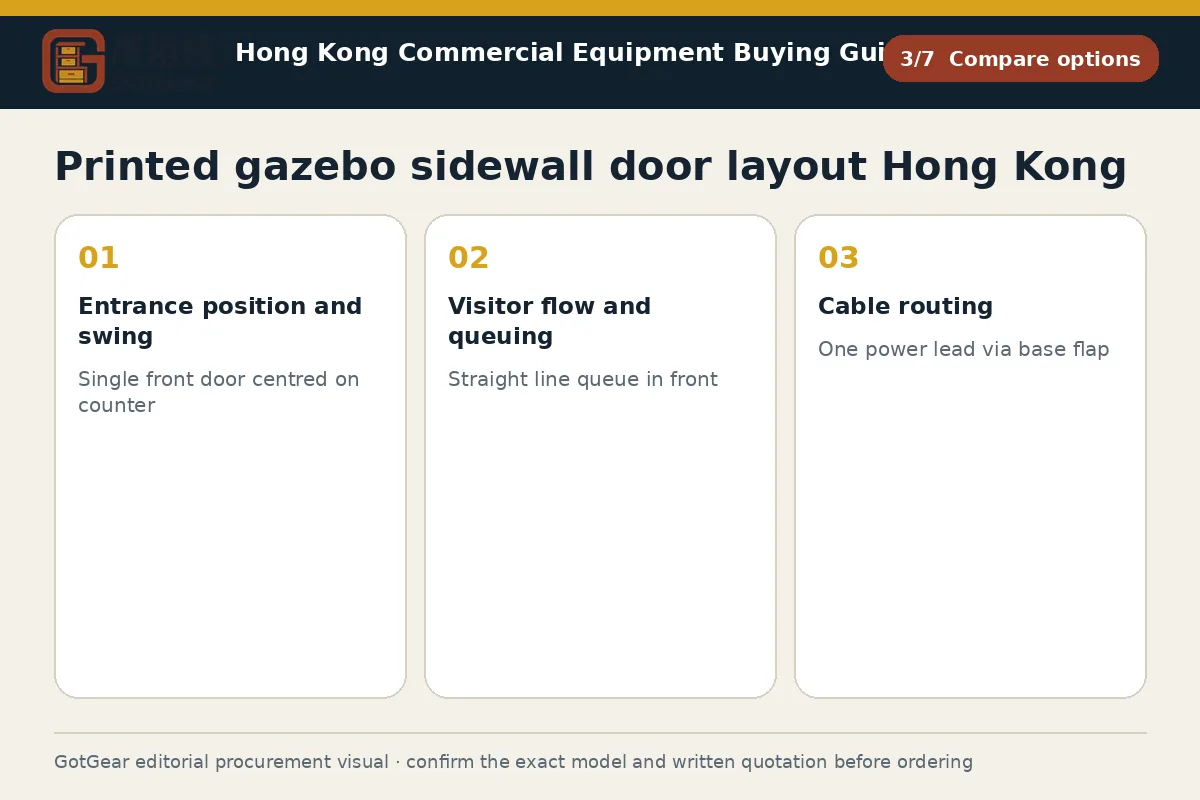

What should buyers compare for printed gazebo sidewall door layout Hong Kong?
| Criterion | Straightforward requirement | More complex requirement | Evidence to provide |
|---|---|---|---|
| Entrance position and swing | Single front door centred on counter | Offset door with defined left-hand roll and rain hood | Panel plan with clear opening, roll direction and dimensions |
| Visitor flow and queuing | Straight line queue in front | Split queue or side entry with barriers | Scaled site sketch showing queue path and widths |
| Cable routing | One power lead via base flap | Multi-cable bundle via zipped high port with seal | Cable list, bundle diameters, port coordinates from corner |
| Graphics protection | Logos clear of any zip or seam | Full-bleed art with safe zones and seam-aware repositioning | Layered artwork with annotated safe margins and panel IDs |
| Documentation and approvals | Signed supplier PDF proof | Venue/insurer statements and bilingual safety notices if requested | Signed proof, requested statements and translation copies |
This framework helps buyers create comparable written enquiries. Final model specifications, availability, delivery and commercial terms must be confirmed in a formal quotation.
Protecting visible graphics in printed gazebo sidewall door layout Hong Kong
Protecting visible graphics means designing safe zones around every cut, zip and seam. Map logos, headlines and calls-to-action away from door perimeters and cable penetrations, and keep essential text within agreed margins that suit the wall size and print method. Use a panel-by-panel proof that shows seam allowances, stitch lines and roll-up strap positions overlaid on the artwork. If bilingual copy is required, align your policy for bilingual canopy tent printing in Hong Kong so that Chinese and English read cleanly whether the wall is viewed from inside or outside.
Where QR participation is important, treat code size and placement as part of artwork engineering rather than decoration. Align your guidance on custom canopy QR code placement in Hong Kong with sightlines from the queue and ensure no code straddles a zip or buckle. In quotations, ask for the print process, substrate, colour management notes and a pre-press proof with panel IDs. Where the venue is humid or near sea air, request the manufacturer’s care sheet for cleaning and drying to minimise staining or colour shift. If tight colour is critical, ask for a small swatch print as an example starting point, subject to the supplier’s workflow.
Layout sign-off for printed gazebo sidewall door layout Hong Kong
Turn your annotated drawing into a sign-off pack that any venue, management office or institution can read quickly. Include door positions, opening directions, clear openings, barrier anchor points, and every cable port with coordinates from a named corner. Add thumbnail views showing inside/outside orientation so panels are not flipped during installation. If the event requires controlled egress, align openings with the organiser’s brief for the temporary event canopy emergency exit layout Hong Kong, and keep branding clear of any mandated safety symbols.
Schedule approvals around loading windows and the tight goods-lift sizes common in industrial buildings. Confirm the frame model the walls will attach to, including clip/strap compatibility, and record the longest packaged panel length for lift clearance. Prepare bilingual "Entrance/Exit" labels to apply on site if required, and keep a printed panel map in plastic sleeves for wet conditions. On receipt, verify each wall’s ID matches the plan, check zip quality and reinforcement at corners, and confirm that artwork orientation matches the signed proof. Photograph the unpacked set with labels visible before first use, then run a brief dry fit to confirm barriers, queue lines and signage match the plan for the outdoor concession canopy queue layout Hong Kong.
Printed gazebo sidewall door layout Hong Kong decision checklist

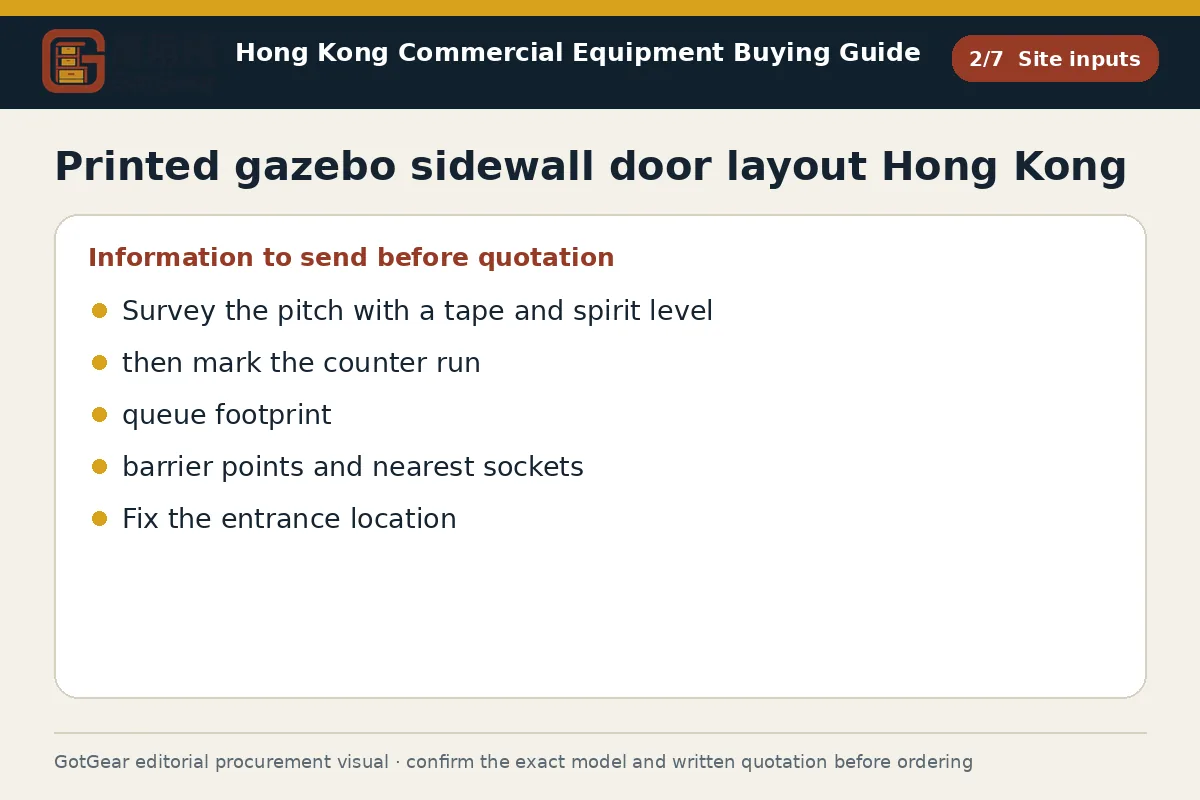

Survey the pitch with a tape and spirit level, then mark the counter run, queue footprint, barrier points and nearest sockets. Fix the entrance location, clear width and opening direction that best serves staff and visitors, and set secondary service access if needed. Define cable paths, port types, bundle diameters and exact coordinates from a known corner. State the wall-to-frame attachment method, reinforcement preferences and rain-flap needs. Protect graphics by specifying safe zones around zips, seams and ports, and confirm bilingual copy and any QR placement. Compare written quotations for panel plans, print process, included ports, reinforcements and labelling. Request the maker’s fabric specifications and any venue-requested statements. Confirm packaging size for lift access, delivery timing for the loading window, and a pre-press proof with panel IDs before production.
- Operating use, quantity and expected frequency
- Dimensions, capacity, material and accessory requirements
- Delivery address, floor, goods lift and loading window
- Required documents, acceptance checks and after-sales arrangements
Key points for printed gazebo sidewall door layout Hong Kong, canopy sidewall cable access Hong Kong
Hong Kong venues often require early coordination with the management office, including a plan showing where visitors enter, how queues form and how power reaches displays. Tight loading windows and small goods-lifts in industrial buildings can limit the maximum panel length and packing method. Humid, windy and showery conditions mean doors and cable ports should resist water tracking and allow quick closure. Public-event controls may specify stewarded entry points or egress widths; follow the organiser’s written brief and the supplier’s model specifications rather than assumptions, and prepare bilingual labels where appropriate. This is practical guidance, not legal advice.

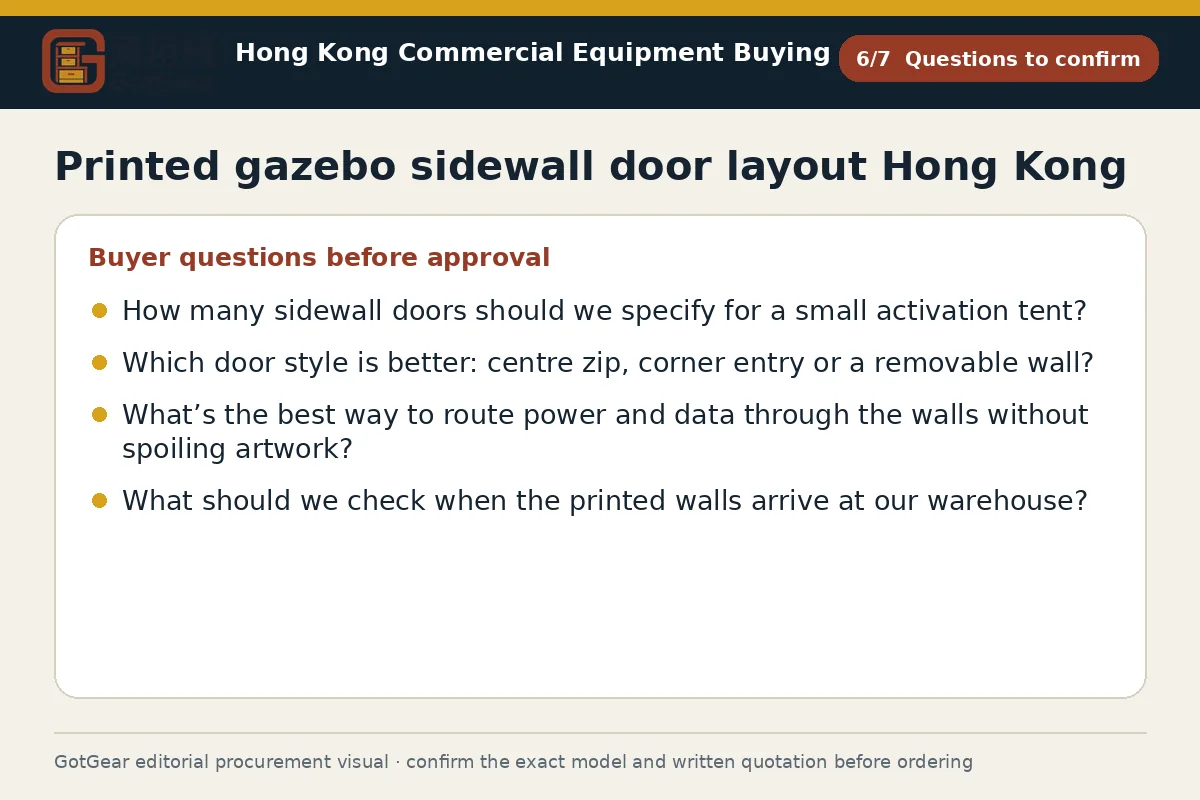

Questions about printed gazebo sidewall door layout Hong Kong
How many sidewall doors should we specify for a small activation tent?
Decide door quantity from visitor approach, counter positions and staff movement, then add a service access if replenishment must bypass the queue. Some venues may request additional egress, so share your plan with the organiser or building manager. Use your measured queue line and barrier layout to show that doors do not discharge into a pinch point or obstruct neighbouring stands.
Which door style is better: centre zip, corner entry or a removable wall?
A centre zip with roll-up toggles is quick and tidy for front-facing counters, while a corner entry can hide back-of-house movement. A removable wall maximises opening but needs more handling space. Confirm the frame model and weather exposure, then ask the supplier to detail clear opening size, zip layout, reinforcement and any rain hood option in the quotation.
What’s the best way to route power and data through the walls without spoiling artwork?
Pre-plan high-level ports behind screens and return cables down behind the counter, keeping messages uninterrupted. Choose zipped pass-throughs or reinforced eyelets and specify coordinates from a fixed corner. Where weather is a factor, add flaps and seal options. For complex bundles or canopy sidewall cable access Hong Kong at public events, request the maker’s reinforcement and fabric statements if the organiser requires them.
What should we check when the printed walls arrive at our warehouse?
Count panels and confirm each ID matches the plan. Inspect print alignment at seams, check that logos and QR codes clear zips and ports, and test every door and cable zip for smooth travel. Look for reinforcement at corners and ports, and verify orientation labels inside/outside. Photograph the set. If anything conflicts with the signed proof, pause deployment and seek a written remedy from the supplier.
Continue with closely related procurement topics
These pages share equipment, operating or decision-stage signals with this guide.
Canopy tent artwork bleed guide Hong Kong
Refer to the GotGear canopy tent artwork bleed guide Hong Kong to set bleed and safe areas. Also review canopy tent seam artwork Hong Kong and test custom canopy small text printing Hong Kong on a final-size proof.
Read the guide

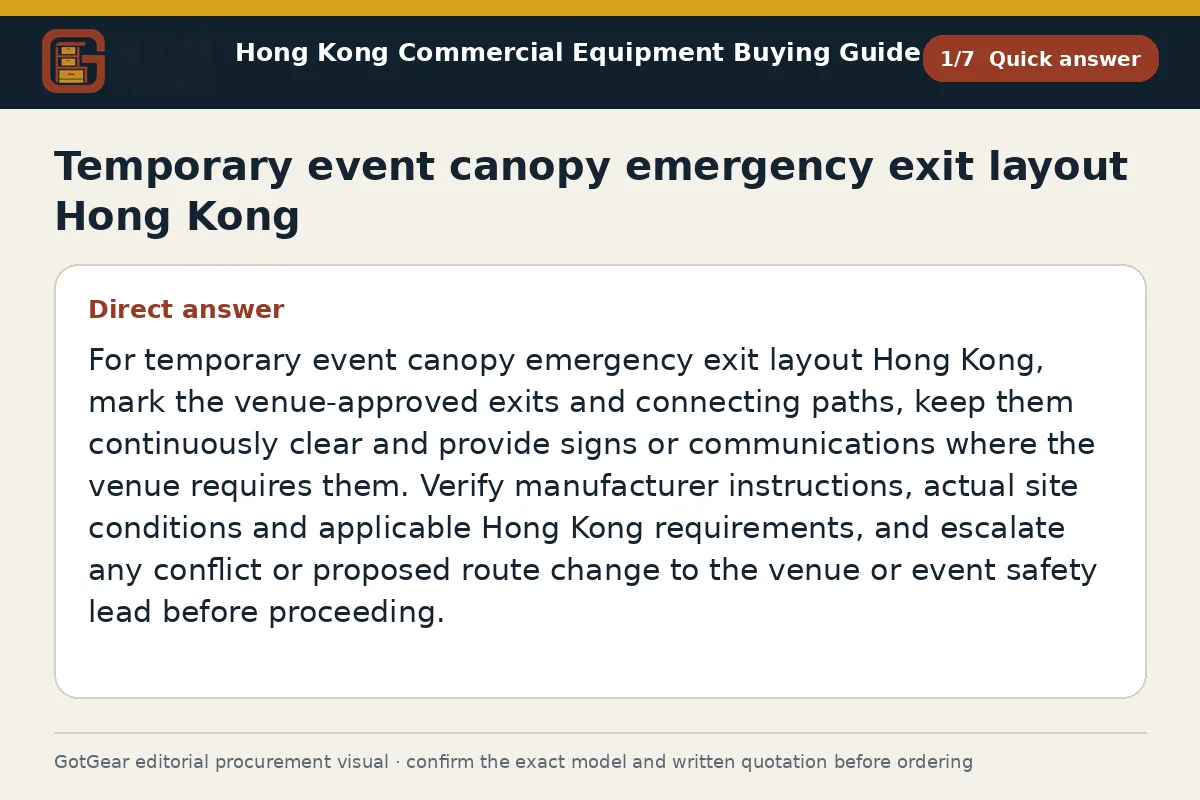

Temporary event canopy emergency exit layout Hong Kong
