For pallet rack wire decking Hong Kong, provide the rack make or series if known, clear beam dimensions, bay width, pallet type and load footprint. Add photographs, beam and frame details, support layout and maximum unit-load data so compatibility can be reviewed for the configured system.
Match pallet rack wire decking Hong Kong to beams and pallet positions
When specifying pallet rack wire decking Hong Kong to match beams and pallet positions, start by confirming the rack make or series if available, then measure how the decking will actually sit. Identify the beam type (step, box or structural), the step depth and step width where U‑channels would rest, and the clear inside distance between the front and rear beams within the bay. Note whether a “waterfall” lip over the beam face is preferred for locating and edge protection.
Record the frame depth, the intended pallet orientation (stringers front‑to‑back or left‑to‑right), and planned overhang relative to the frame. If pallets will be centred with a rear flue space, log the target flue and any row spacers that fix it. Confirm whether safety bars or intermediate front‑to‑back supports already exist. For box beams, state if flush‑fit or saddle‑type supports are required. In quotations, ask suppliers to state channel count and profile, mesh pitch and wire diameter, rated capacity per deck on the stated beam span, and finish. In Hong Kong buildings with tight goods‑lifts, also confirm deck panel dimensions and nesting height, so deliveries can be sequenced without obstructing lift lobbies or shared corridors.
Document load dimensions for pallet rack wire decking Hong Kong

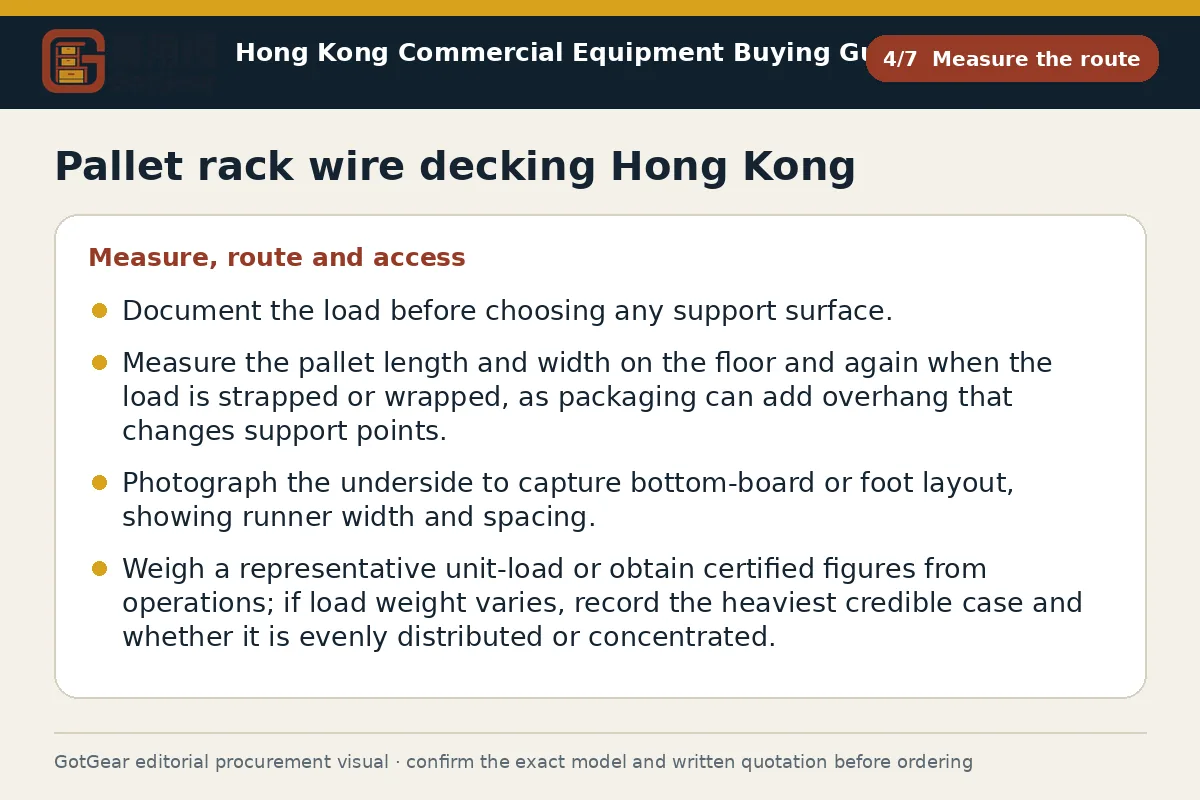

Document the load before choosing any support surface. Measure the pallet length and width on the floor and again when the load is strapped or wrapped, as packaging can add overhang that changes support points. Photograph the underside to capture bottom‑board or foot layout, showing runner width and spacing. Weigh a representative unit‑load or obtain certified figures from operations; if load weight varies, record the heaviest credible case and whether it is evenly distributed or concentrated.
State the pallet material (timber, plastic, metal), whether it is two‑way or four‑way entry, and any baseboards or skids that shift the bearing line. If cartons or containers will sit directly on decking, include carton footprint, stack pattern and any planned aisle‑side pick faces. As an example starting point only, a buyer might note “example pallet 1200 × 1000 mm, example unit‑load 750 kg, centre of gravity central,” to be confirmed in the written brief by a competent person. Request manufacturer data sheets for the proposed models showing how ratings were determined on the quoted beam spans and support layouts.
What should buyers compare for pallet rack wire decking Hong Kong?

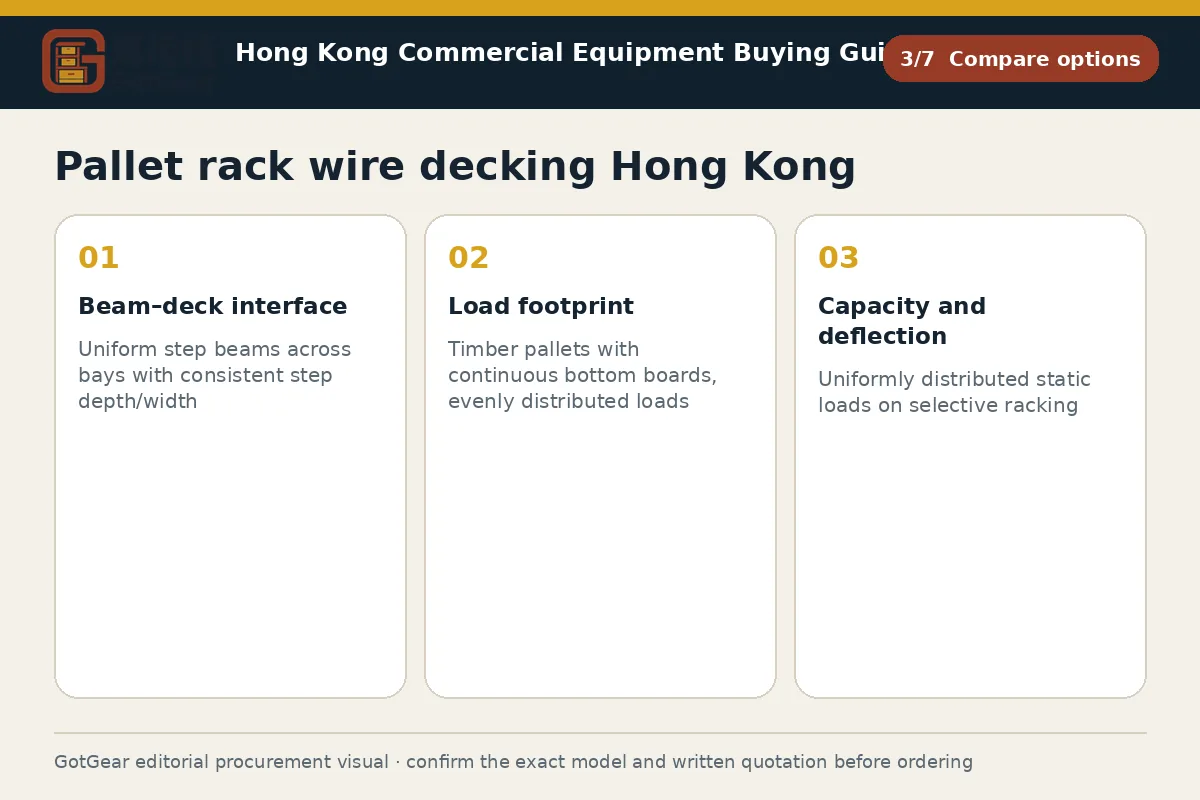

| Criterion | Straightforward requirement | More complex requirement | Evidence to provide |
|---|---|---|---|
| Beam–deck interface | Uniform step beams across bays with consistent step depth/width | Mixed step and box beams or unknown profiles in the same run | Beam make/series (if known), step measurements, close‑up photos of beam top and step |
| Load footprint | Timber pallets with continuous bottom boards, evenly distributed loads | Plastic pallets, drums, containers with feet or concentrated loads | Pallet dimensions, underside layout sketch/photo, heaviest credible unit‑load |
| Capacity and deflection | Uniformly distributed static loads on selective racking | Concentrated bearing lines or variable loads requiring extra channels/bars | Required unit‑load, beam span, requested rated capacity and test method on quote |
| Finish and environment | Dry indoor store with minimal humidity and no washdowns | Coastal humidity, temperature swings, or cleaning chemicals present | Site conditions, chemicals used, preferred finish options for supplier response |
| Access and installation | Ground‑floor dock with unobstructed access and staging space | High‑rise with tight goods‑lifts, narrow doors, fixed loading windows | Goods‑lift size, route photos, time slots, staging area plan and contact details |
This framework helps buyers create comparable written enquiries. Final model specifications, availability, delivery and commercial terms must be confirmed in a formal quotation.
Pallet rack wire decking Hong Kong: Compare with pallet rack support bars Hong Kong
Decide early whether a full-mesh deck or discrete supports will best serve the load and the rack. Wire decking provides a continuous surface that helps catch small items, allows visibility and permits flexible pallet positioning within a bay. Support bars concentrate strength along the lines under the pallet runners and are suitable for point loads, timber shelving or bulky items. When comparing pallet rack wire decking in Hong Kong with pallet rack support bars in Hong Kong, base the choice on the actual bearing lines under your load rather than on assumptions.
For decking, compare channel count and profile, mesh pitch, wire diameter, panel depth and whether a waterfall edge is required. For bars, compare bar profile, the number of bars per bay and how they attach to step or box beams. When obtaining quotes, ask for the rated capacity for your beam span with clearly stated test assumptions, finish options (zinc-plated, galvanised or powder-coated) and any compatible accessories. If fire performance, housekeeping or insurer preferences affect the selection, obtain written guidance from the building manager, the insurer or another competent authority for the specific venue. The model specification and formal quotation must prevail.
Inspect the existing rack before ordering pallet rack wire decking Hong Kong
Before ordering, examine the existing rack in situ. Check beams for identification labels, locking pins present, straightness and any visible deformation or corrosion. Confirm step dimensions are consistent across the aisle and that front and rear beams are level and seated. Measure several bays for frame depth and inside beam clear width, noting any repair sections or mixed beam profiles. Photograph beam ends, steps and frame bracing so the interface is clear in a bilingual brief.
Walk the access route from loading bay to install area. In many Hong Kong buildings, goods‑lifts and doorways are tight and loading windows are fixed by management offices; record lift car size, maximum load per trip if posted, and any time restrictions. Humid conditions can influence finish choices and inspection on receipt: check for coatings integrity, burrs and transit damage. When the delivery arrives, verify panel or bar counts against the packing list, confirm channel profiles and dimensions match the quotation, and request manufacturer compatibility confirmations where the rack make or beam profile was uncertain during the enquiry.
Pallet rack wire decking Hong Kong decision checklist

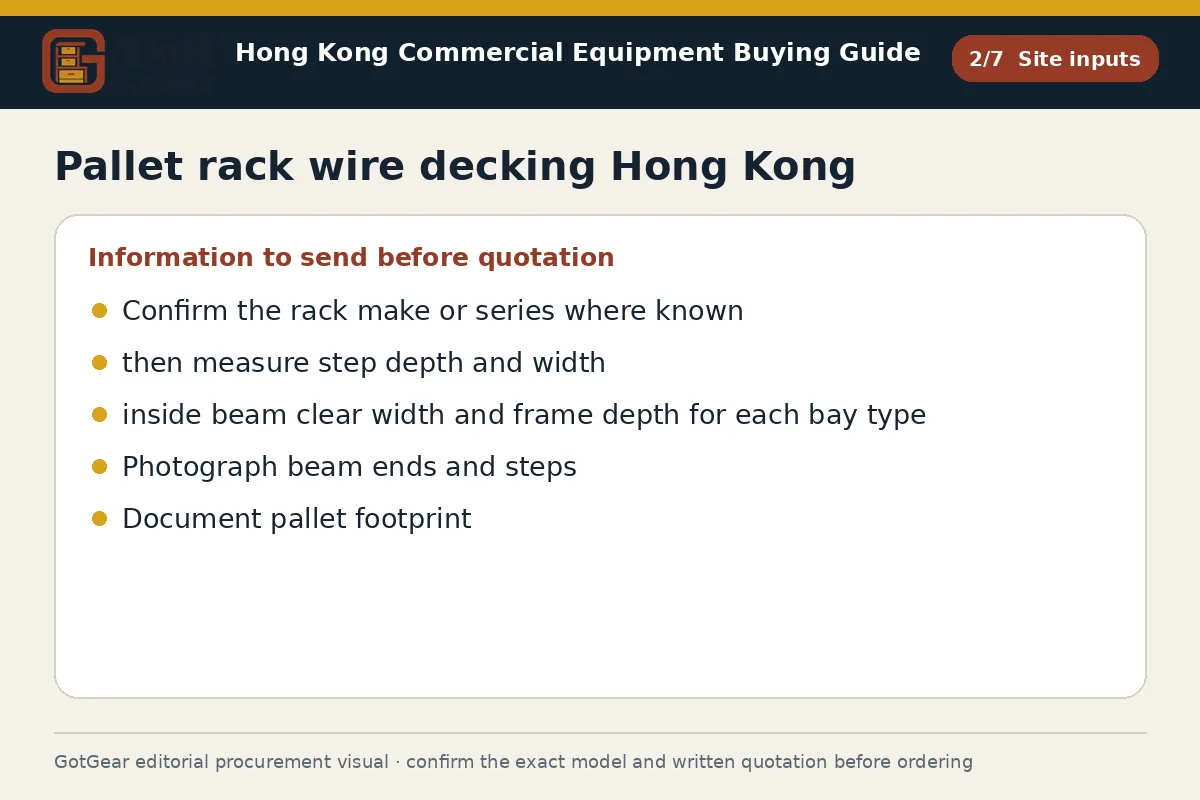

Confirm the rack make or series where known, then measure step depth and width, inside beam clear width and frame depth for each bay type. Photograph beam ends and steps. Document pallet footprint, underside bearing lines, total unit‑load weight and whether loading is uniform or point‑loaded. Decide if a continuous surface or line supports best matches the load. Ask suppliers to state channel or bar count, profile, mesh pitch, wire diameter, finish and rated capacity on your actual beam span, with test assumptions. Record Hong Kong access constraints: goods‑lift size, doorway widths, loading windows and staging space. In the written quotation comparison, check model identification, compatibility notes and exclusions. On receipt, verify quantities, dimensions, finish, weld quality and that labels match the order, before moving panels to the install area.
- Operating use, quantity and expected frequency
- Dimensions, capacity, material and accessory requirements
- Delivery address, floor, goods lift and loading window
- Required documents, acceptance checks and after-sales arrangements
Key points for pallet rack wire decking Hong Kong, pallet rack support bars Hong Kong
Hong Kong warehouses and institutional stores often sit in multi‑tenant towers, where goods‑lift size, shared corridors and fixed loading windows govern what can be delivered and when. Expect tight lift cars and doorways that constrain panel depth and nesting height; plan staged deliveries and holding areas with management‑office approval. Coastal humidity and frequent washdowns in food or retail back‑of‑house can influence whether zinc‑plated, galvanised or painted finishes are appropriate. Where fire, building or insurer requirements might influence support selection, seek written guidance for the specific venue. This page offers general planning input, not legal advice.

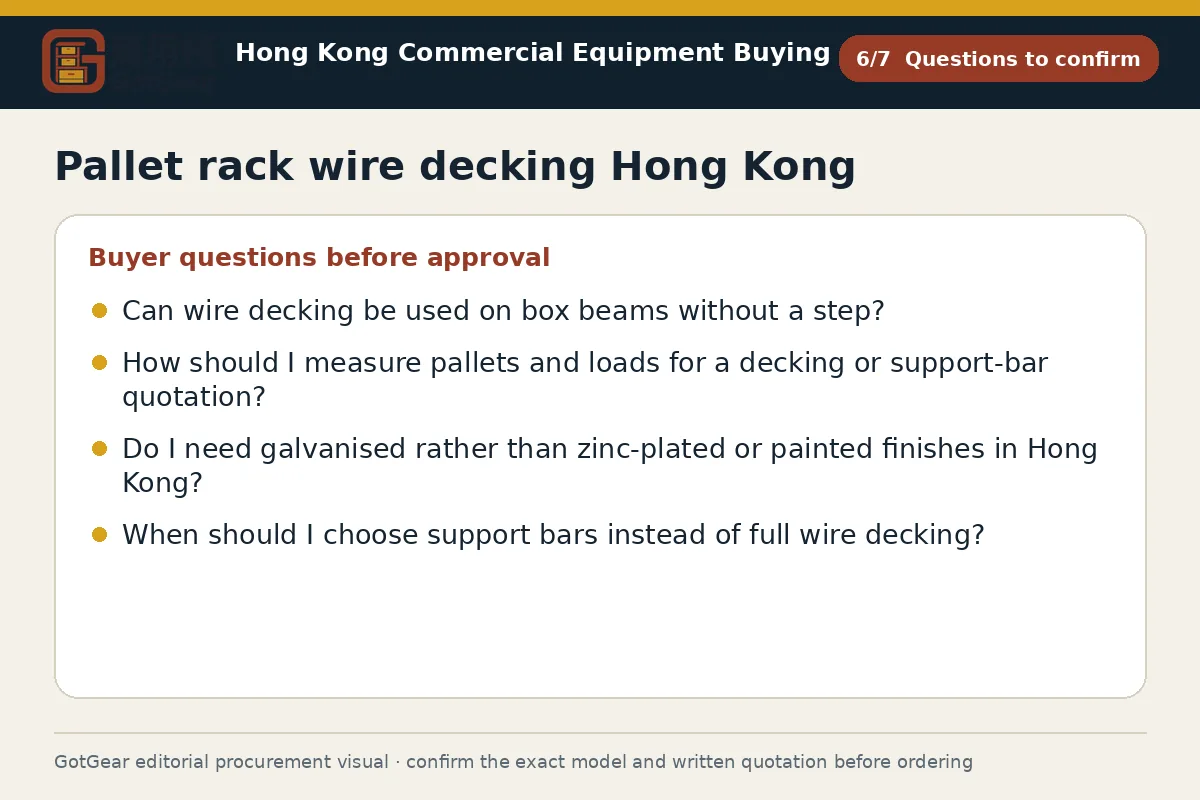

Questions about pallet rack wire decking Hong Kong
Can wire decking be used on box beams without a step?
Yes, but it must be the correct interface. Specify whether you need saddle‑type, flush, or waterfall‑over designs that suit box beams, and request the manufacturer’s compatibility confirmation. Provide beam photos and dimensions in your enquiry. Some sites also use support bars with flush decks across box beams. Final selection should follow the written model specification and quotation.
How should I measure pallets and loads for a decking or support‑bar quotation?
Measure the pallet footprint on the floor and when wrapped, photograph the underside, and log the heaviest credible unit‑load. Note runner width and spacing, pallet material, and whether loading is uniform or concentrated. Include any carton‑on‑deck scenarios. As an example starting point only, you might record an example 1200 × 1000 mm pallet, then confirm figures in the formal brief.
Do I need galvanised rather than zinc‑plated or painted finishes in Hong Kong?
Choose the finish to match the environment. In humid, coastal or washdown areas, galvanised or heavier zinc coatings may be preferred; in dry indoor stores, zinc‑plated or painted surfaces may suffice. Document cleaning agents, exposure and temperature swings in your enquiry. Always defer to the manufacturer’s options and the site manager’s written guidance for the venue.
When should I choose support bars instead of full wire decking?
Use bars when loads bear on defined runners or feet, or when you intend to add timber or solid panels on top. Choose full wire decking when you need a continuous surface for small items, mixed SKUs or better containment. Provide beam type, span and load footprint either way, and compare rated capacities and finishes stated on the written quotation.
Continue with closely related procurement topics
These pages share equipment, operating or decision-stage signals with this guide.
Pallet rack beam connectors Hong Kong
When selecting pallet rack beam connectors Hong Kong, verify the rack series, beam section, frame geometry and load requirements, and confirm the racking frame bracing Hong Kong. Contact GotGear for details.
Read the guide
Pallet rack row spacers Hong Kong
GotGear details what to record when specifying pallet rack row spacers Hong Kong and lists inspection points for pallet rack base plates Hong Kong and racking levelling shims Hong Kong.
Read the guide
Industrial shelving Hong Kong
GotGear outlines loads, dimensions, layout and moisture considerations for industrial shelving Hong Kong. It compares galvanised steel shelving Hong Kong with powder-coated steel shelving Hong Kong.
Read the guide

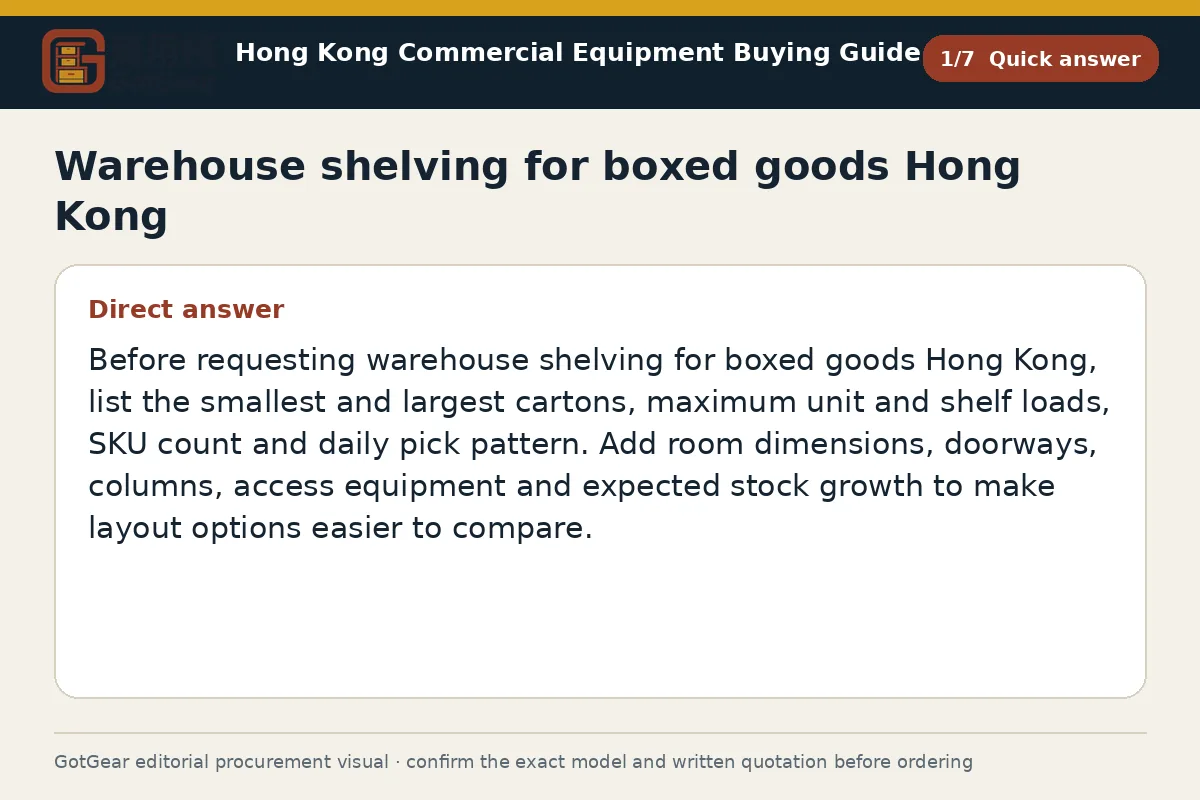

Warehouse shelving for boxed goods Hong Kong
