For pallet rack beam connectors Hong Kong, send the rack make or series, beam section, connector and frame photographs, current elevations and available drawings. State any load, bracing or layout change and have the complete configuration reviewed rather than assuming that a visually similar component is suitable.
Identify rack series before sourcing pallet rack beam connectors Hong Kong
Before purchasing pallet rack beam connectors in Hong Kong, confirm the rack manufacturer, series and generation. Two systems that appear similar can have different hook geometry, upright pitch or locking methods, and a mismatch can diminish capacity or prevent engagement. Start by locating any frame labels, stamped part numbers on beams or end connectors, distinctive upright hole profiles and the typical colours used by the brand; photographs of these markers, plus a clear view of the connector in situ, are invaluable. If the site has mixed fleets from relocations, treat each bay as suspect until proven consistent.
Build a concise identification pack for sourcing: make and series (if known), site, zone and bay references, photographs of the connector from both sides, the upright face, hole-pattern close-ups and a tape-measured pitch view. Summarise this in a warehouse racking specification for Hong Kong that also captures approximate beam lengths, nominal frame depths and any observed repairs or non-standard clips. Require written confirmation from the prospective supplier that the proposed connector is compatible with the stated series and upright profile, not just “similar.” Where estates or institutions require bilingual records, ask for English and Chinese product names to appear on drawings and delivery notes. Use this guide to compare specifications and prepare a written enquiry so shortlists are based on verified system families rather than guesswork.
Document beam and frame geometry for pallet rack beam connectors Hong Kong
Geometry governs fit and performance, so document beam, connector and frame details carefully before you request quotations. Note beam type (box, step or rolled channel), its measured height and flange form; capture the connector plate outline, hook count, hook spacing and any lance, keyhole or teardrop features. Record the locking device type (clip, pin or bolt) and whether it is integral or separate. Measure the upright face width, return depths, side wall shape and hole pitch with a tape placed visibly in photos. As an example starting point, note whether the vertical pitch appears close to, say, 50 mm or 75 mm, then have the supplier confirm exact dimensions from drawings.
For frames, photograph baseplates, bracing nodes and any splices; record nominal frame depth and the distance from the floor to the first beam level. Ask vendors to state in writing the connector code, material grade, coating system, fasteners supplied and the required locking device. Require beam and frame allowable loads at the stated elevations and bay widths, plus any installation tolerances applicable to the system. Quote requests should also ask for marked-up elevations and a compatibility statement that ties the connector to your upright profile. If you are preparing a warehouse racking tender specification Hong Kong, list all requested fields and evidence so bidders respond on equal terms. On receipt, compare submittals line-by-line and query any “equivalent” claim that lacks proof.
What should buyers compare for pallet rack beam connectors Hong Kong?

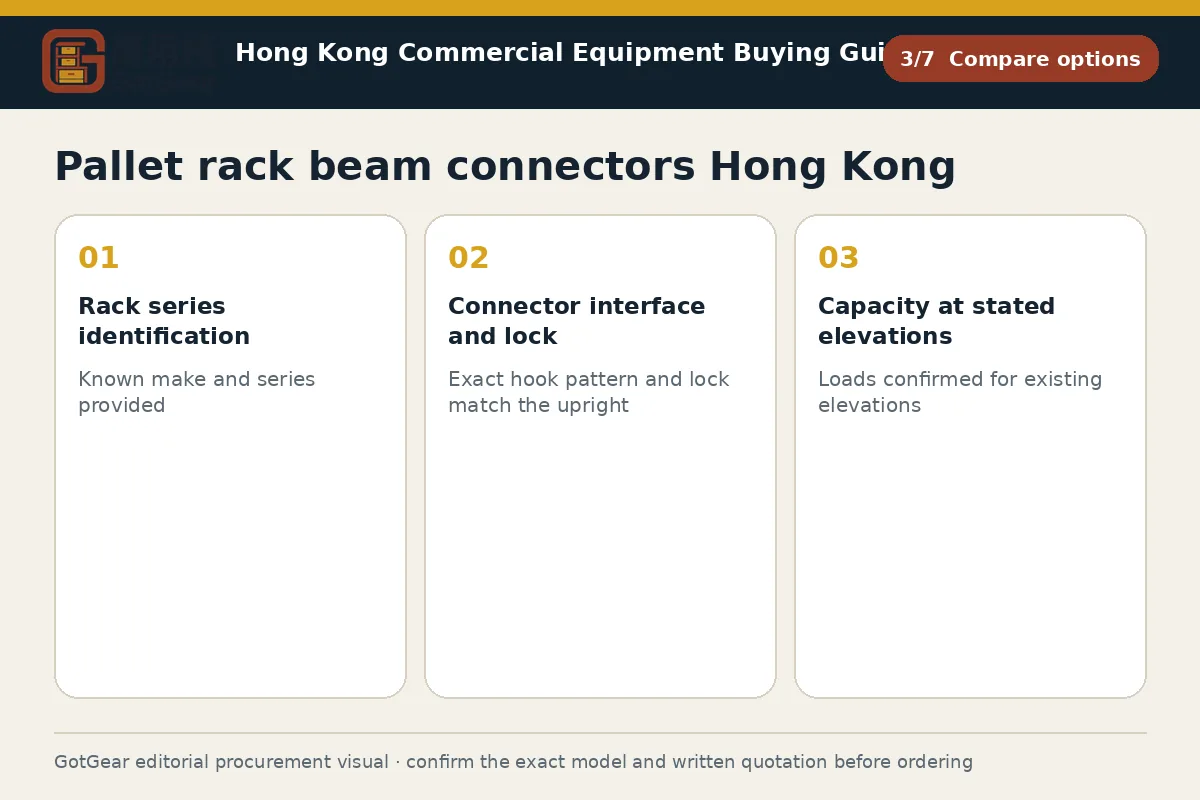

| Criterion | Straightforward requirement | More complex requirement | Evidence to provide |
|---|---|---|---|
| Rack series identification | Known make and series provided | Mixed or unlabelled fleets across zones | Photos of connectors/uprights with tape, any labels, site/bay references |
| Connector interface and lock | Exact hook pattern and lock match the upright | Different plate thickness or altered hook geometry | Marked connector drawing, stated part code, lock type and fasteners |
| Capacity at stated elevations | Loads confirmed for existing elevations | Revised elevations, decking or point loads | Supplier load table or note tied to your marked elevations |
| Finish and environment | Standard powder coat for dry interiors | Enhanced coating for humid, marine or chilled areas | Finish specification, care/handling instructions, storage plan |
| Access and documentation | Simple dock access and daytime delivery | Lift restrictions, tight turns, out-of-hours windows | Access notes, delivery route plan, bilingual drawings and labels |
This framework helps buyers create comparable written enquiries. Final model specifications, availability, delivery and commercial terms must be confirmed in a formal quotation.
Relate pallet rack beam connectors Hong Kong to racking frame bracing Hong Kong
Connector stiffness and engagement work together with the frame to resist shear and sway, so relate your connector choice to racking frame bracing Hong Kong rather than treating them in isolation. The diagonal and horizontal bracing pattern, upright gauge and baseplate form influence how load paths develop; a connector that alters beam seating or lock behaviour can shift forces into components not designed for them. If frames have been repaired, re-braced or partially replaced, assume capacities have changed until verified.
Back-to-back rows add more variables. When using pallet rack row spacers Hong Kong, the connector fit must still lock properly and the frame bracing must be appropriate for the increased row stiffness and tied behaviour. In procurement, ask for a technical note or calculation pack, where required by your organisation, insurer or building manager, confirming that the proposed connector, at your nominated beam elevations, remains within the published limits for the identified frame series and bracing pattern. If you have non-standard accessories (timber decking, mesh, safety back), have the supplier confirm any added weight or restraint effect is considered. The model specifications and the supplier’s formal written quotation must prevail over assumptions.
Review load or layout changes involving pallet rack beam connectors Hong Kong
Changing pallet types, product mixes or material-handling equipment can alter demand on connectors and frames, so review the whole configuration before moving or adding beams. A change to racking beam elevation at Hong Kong sites can reduce allowable beam capacities for some systems; even if the connector is identical, revised spacing, overhangs, decking weights or point loads may require updated load signage. If in-dock staging grows or forklift class changes, advise bidders so they can consider increased impact risk or recommend locking devices and accessories consistent with the identified series.
For Hong Kong sites, plan around access and timing. Check beam lengths against goods-lift and stair dimensions; long components may need dock-to-floor routing via approved areas and pre-booked loading windows. Humid conditions and marine air in some districts can justify enhanced coatings; ask suppliers to propose finishes and provide care instructions for storage before installation. Request bilingual installation instructions and part labels to support mixed crews and management-office approvals. On delivery, inspect part numbers, connector profiles, finish quality and included locks or fasteners; quarantine any piece with bent hooks, distorted plates or chipped coating and seek written guidance. Ensure the final proposal, drawings and capacities in the quotation match the as-built configuration before work proceeds.
Pallet rack beam connectors Hong Kong decision checklist
Begin by confirming the rack make, series and any mixed generations. Photograph upright hole profiles, connector plates and locks, with a tape in view to show pitch and dimensions. Measure beam type and height, upright face and returns, and note frame depth, baseplates and bracing. State the intended beam elevations, bay widths, decking type and any proposed layout or load changes. Request a written compatibility statement, connector code, material grade, finish, locking device and fasteners. Ask for allowable loads at your stated elevations plus marked-up elevations showing them. Include site constraints such as access routes, lift sizes and delivery windows, and ask for bilingual documents if required. On receipt, compare quotations line-for-line against your specification and challenge any “equivalent” without evidence. The supplier’s model specifications and formal written offer should govern.
- Operating use, quantity and expected frequency
- Dimensions, capacity, material and accessory requirements
- Delivery address, floor, goods lift and loading window
- Required documents, acceptance checks and after-sales arrangements
Key points for pallet rack beam connectors Hong Kong, racking frame bracing Hong Kong
Hong Kong buildings often control loading-dock slots, lift usage, delivery hours and contractor access, so compatibility checks should be paired with a realistic installation plan. Confirm whether long beams fit goods lifts or must travel via designated routes, and coordinate with the management office on protection of common areas. Humidity and marine air can affect coatings during storage, so specify packaging and handling accordingly. Many institutions require bilingual documentation; ask for English/Chinese labels on drawings and parts. Site, landlord or insurer requirements may call for technical notes—seek written confirmation where applicable rather than relying on visual similarity.
Questions about pallet rack beam connectors Hong Kong
Can I use a visually similar connector from another brand or series?
Do not assume interchangeability; small differences in hook spacing, plate thickness or locking features can impair fit and capacity. Ask the supplier for a written compatibility statement for your identified series and upright profile. If branding is unknown, provide clear photos and measured pitches so a competent party can verify before you authorise any change.
Do I need new safety clips or pins when changing connectors or beam levels?
Yes—use the locking device specified for the identified system, not a generic substitute. Some locks are one-time use or series-specific. Request the correct part number and installation instructions from the supplier, and have them confirm suitability for your chosen elevations. Where your insurer or estate manager requires it, seek a technical note before proceeding.
What evidence should I request in quotations to confirm suitability?
Ask for the connector part code, material grade, finish, fasteners, and a statement of compatibility with your upright profile. Require allowable loads at your nominated elevations and bay widths, plus marked-up drawings. Where your organisation mandates it, request a brief technical note. Ensure all documents reference your site identifiers so records remain traceable.
How should I plan delivery and storage for connectors and beams in Hong Kong?
Verify component lengths against goods-lift and doorway dimensions, and book loading windows with the management office where needed. Request protective packaging, handling guidance and bilingual labels. Humid conditions and marine air can affect coatings, so specify dry, covered storage. If access restrictions apply at your venue, confirm routing and approvals before scheduling works.
