Pallet rack row spacers Hong Kong: Specifying using layout data

Set back-to-back spacing with pallet rack row spacers Hong Kong

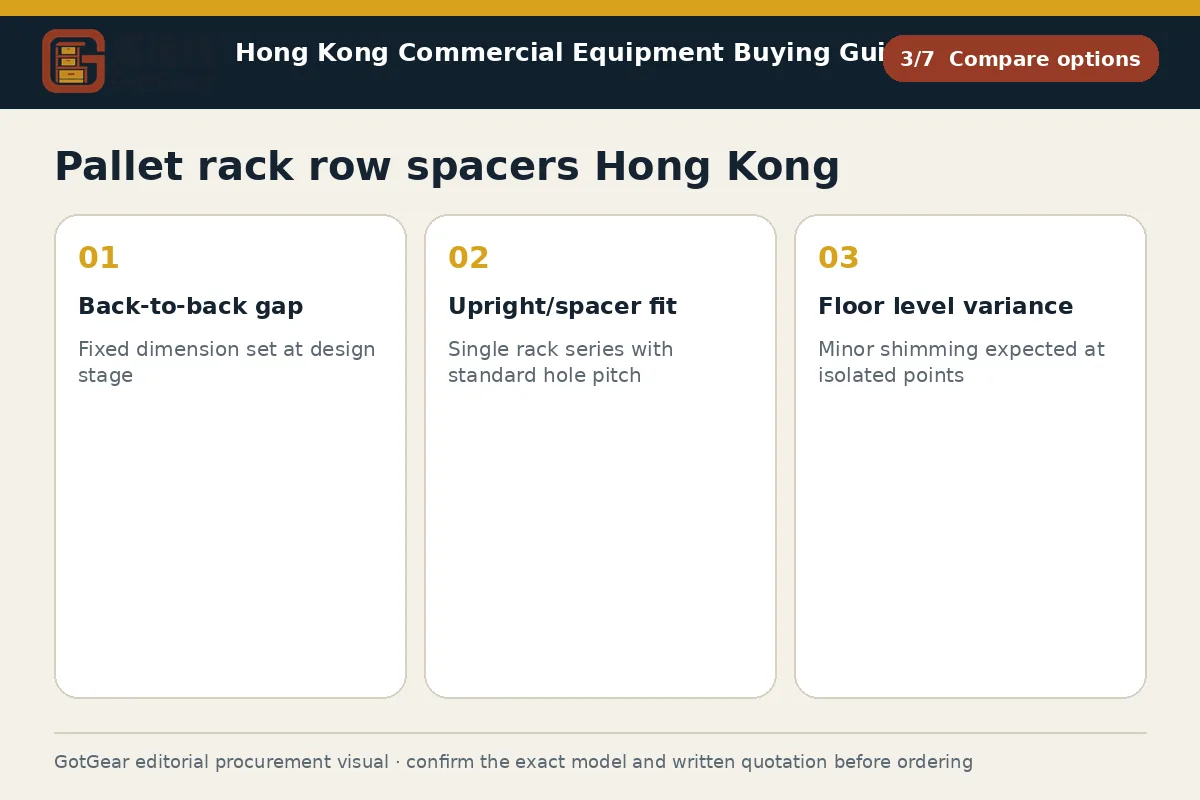

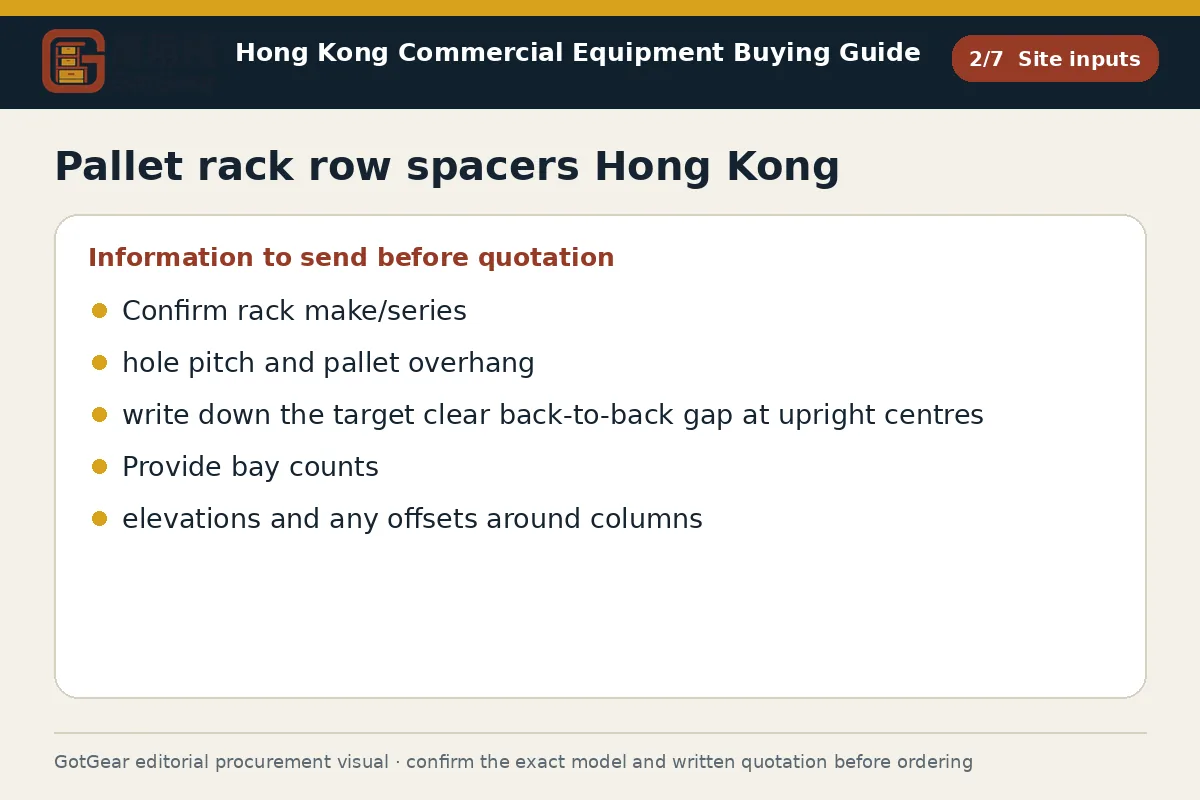

Back-to-back spacing starts with your bay plan and frame data. Confirm the rack make/series, upright profile and hole pitch, then measure frame depths and any intended pallet overhang. State the target clear gap between rows as a dimension at upright centre lines. Where insurers, the building manager or your racking engineer specify a minimum longitudinal flue or inspection gap, cite that figure and who set it. For humid Hong Kong stores, note whether a painted or galvanised finish is preferred and whether fasteners need corrosion resistance. Specify whether you need straight, tubular or triangulated braces, and whether intermediate bracing is required at mid-height for tall frames.

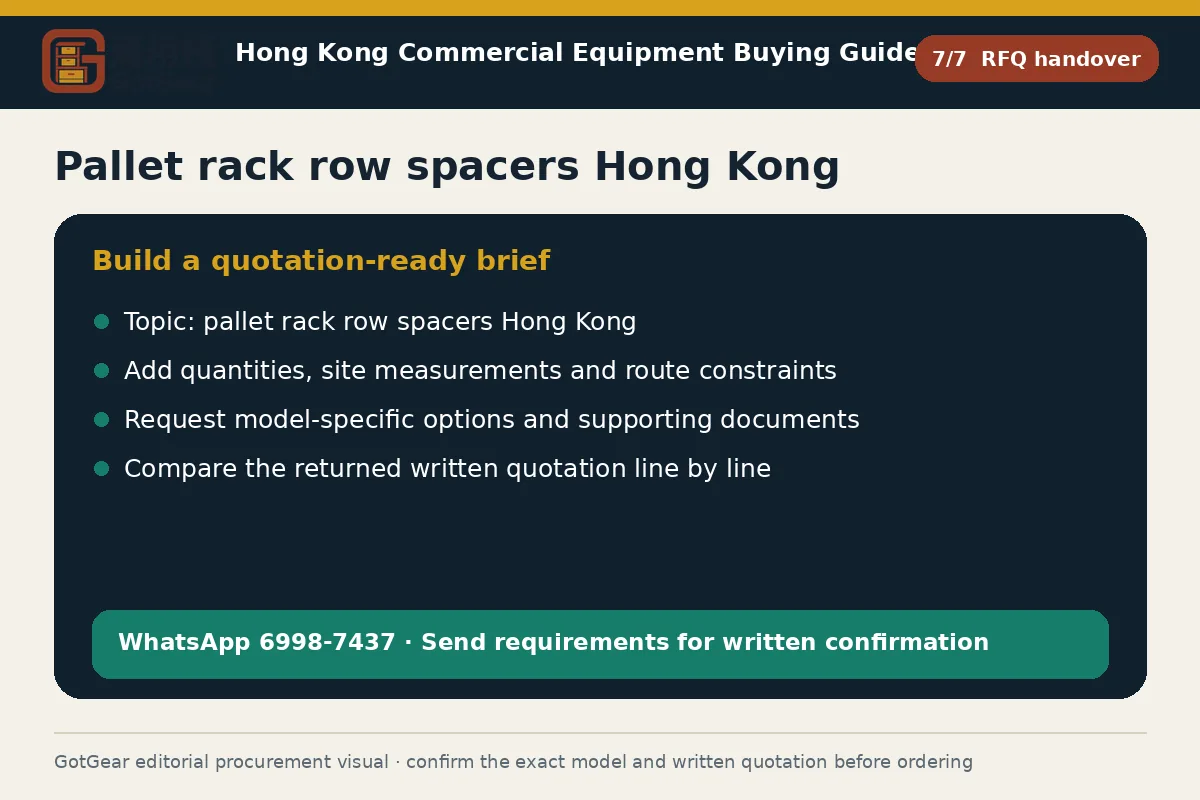

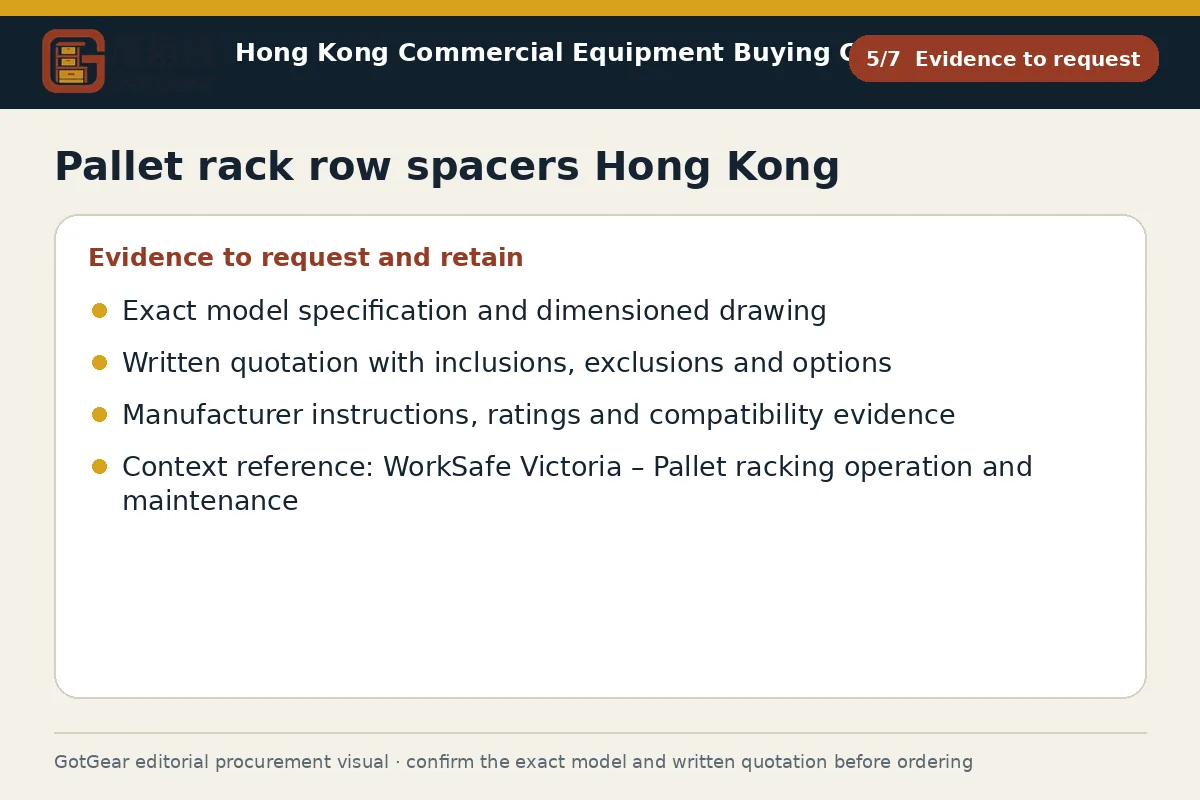

When requesting pallet rack row spacers Hong Kong, ask suppliers to confirm the exact fixing pattern for your upright series and provide system part numbers in the quotation. Provide elevations or a simple sketch marking every upright position in the row, including offsets around columns or drains. For comparison, request written confirmation that the proposed spacers maintain the design gap under normal service loads for your system. On receipt, inspect length, hole alignment, weld quality and coating integrity, and match labels to the quoted part numbers. Any example dimensions discussed during scoping should be validated against the final manufacturer specification; model specifications and the formal written quotation prevail.

Compare the same operating requirements with pallet rack beam connectors Hong Kong, rack end protection Hong Kong, warehouse racking specification Hong Kong. Use the same operating need, dimensions, quantity and delivery assumptions on every page.

Record floor tolerance for pallet rack row spacers Hong Kong

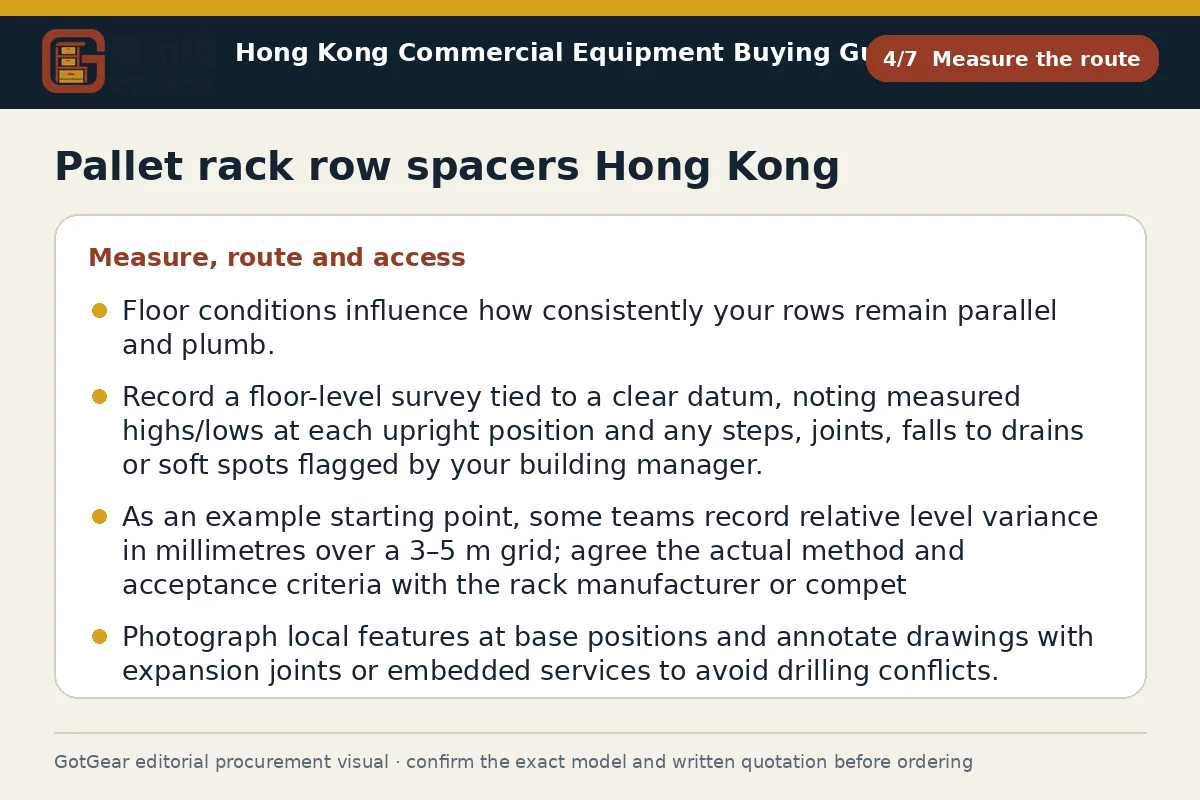

Floor conditions influence how consistently your rows remain parallel and plumb. Record a floor-level survey tied to a clear datum, noting measured highs/lows at each upright position and any steps, joints, falls to drains or soft spots flagged by your building manager. As an example starting point, some teams record relative level variance in millimetres over a 3–5 m grid; agree the actual method and acceptance criteria with the rack manufacturer or competent adviser. Photograph local features at base positions and annotate drawings with expansion joints or embedded services to avoid drilling conflicts.

State anchor hole restrictions imposed by the building or landlord, permissible drilling windows for noise control, and dust management expectations. Include any temporary propping or access constraints for installers, especially in older industrial buildings with tight corridors and goods lifts. Relate the surveyed variance to the required back-to-back gap so the supplier can advise spacer configuration and any need for staggered installation sequences. Where floors are markedly out of level, plan for coordinated use of shims and careful setting out before spacers are bolted, and ensure the supplier’s method statement reflects the site reality and the particular rack series.

Relate pallet rack row spacers Hong Kong to pallet rack base plates Hong Kong

Row spacers lock the relationship between opposing frames; bases anchor the frames to the slab. Make the link explicit in your enquiry by listing the proposed upright series, the base alternatives offered for that series, and the anchor layout so the spacer position clears base fixings and footplates. When discussing pallet rack base plates Hong Kong, request drawings showing hole centres and bolt sizes, and ask the supplier to confirm compatibility with your spacer type and frame depth. If your layout requires back-to-back tie points at specific bay elevations, note those levels on the drawings for each row.

Where slab capacity or fixings are under review, bring your structural adviser and building manager into the conversation early, because base size and anchor count can affect upright alignment and the final gap. If you are reviewing pallet racking floor loading Hong Kong, capture any limits that could influence footplate selection or the need for larger bearing plates. Compare quotations on whether anchors, washers and fasteners are included, the finish of both bases and spacers, and any stated requirements for torque and installation tools. Evidence in writing should pair each proposed base with named spacer part numbers for your specific rack system; the model specification and the final quotation remain authoritative.

Continue the specification review with pallet racking floor loading Hong Kong, warehouse rack guardrails Hong Kong. Use the same operating need, dimensions, quantity and delivery assumptions on every page.

Racking levelling shims in Hong Kong: Pallet rack row spacers Hong Kong

Levelling compensates for floor variance at each upright so rows stay plumb and the back-to-back spacing remains consistent along the bay run. In your brief, request a shim schedule matched to your rack series and base plate design, with thickness increments identified and material type stated. When discussing racking levelling shims Hong Kong, ask whether colour coding or thickness stamping is available to simplify inspection and maintenance. Note any environmental factors such as humidity or washdown that could influence shim material selection and long-term stability.

Shimming interacts with spacers: excessive packing under one upright may skew the intended row relationship if spacers are fitted before plumb is achieved. Sequence matters—seek a method statement confirming that installers will set elevation and plumb first, then fit and torque spacers to the specified gap. Confirm that shims fully support the base plate and do not obstruct anchors. For a complete picture, clarify that spacers are not a substitute for pallet rack beam connectors Hong Kong and do not provide impact defence; plan separate rack end protection Hong Kong if aisle traffic demands it. Keep photographic records of shim stacks and torque markings for handover, with bilingual notes where your operations team prefers Chinese and English.

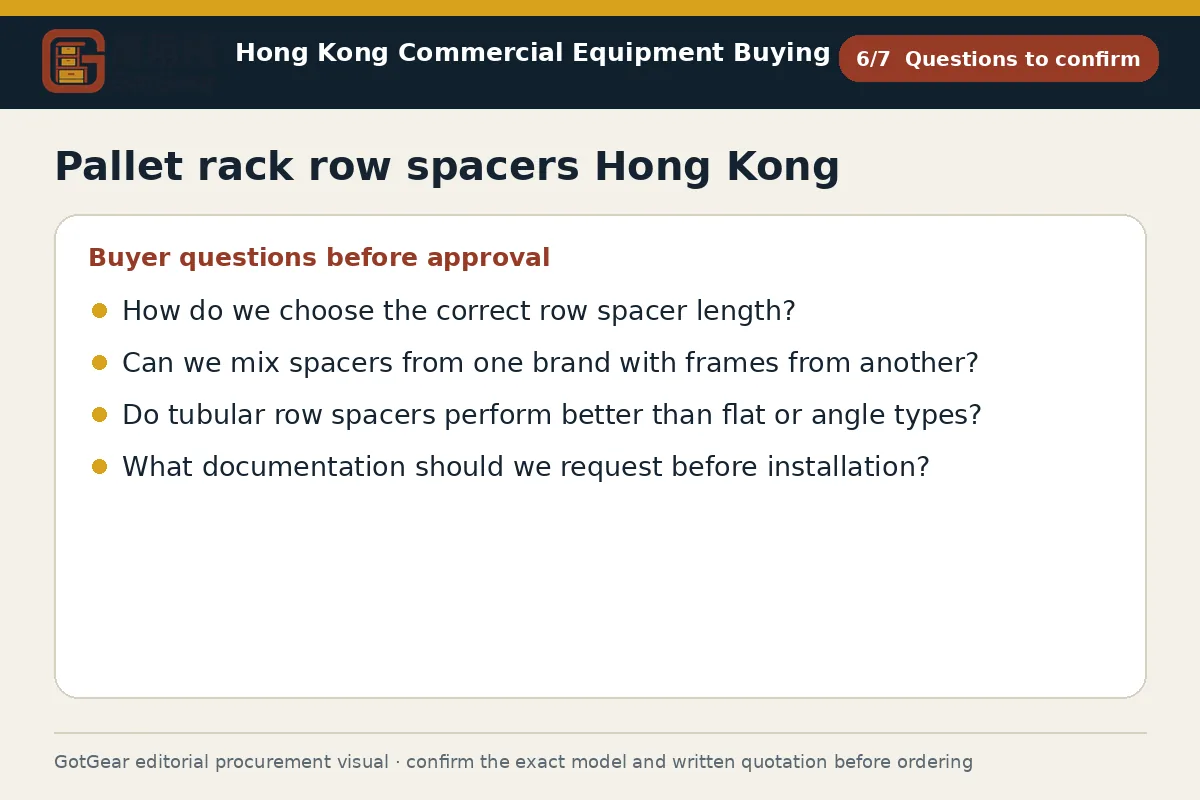

Questions about pallet rack row spacers Hong Kong
